Louver Shutters
E-Zee Set louver shutters come in both fixed and operable louvers and both shed rain, allow air transfer, filter direct sunlight, protect from small flying debris, and provide privacy. Operable louvered shutters allow for greater control in light and ventilation. Traditional louver shutters are built using mortise & tenon construction. They feature square edge stiles and rails and “flush face” design (all stiles and rails are the same thickness). True louver shutters are fully customizable; almost any part can be modified and located to suit your needs.
Louvered shutters can be used in a variety of interior and exterior applications. Some of the exterior applications include louver exterior doors, standard operable shutters and Bermuda shutters.
Species
Premium Louver shutters are offered in either pine or cedar. Elite Series are available in Cedar only. Select the style and series of shutter below for a complete details.
Pine and Cedar shown in image above
Click on picture to enlarge
Premium Series Louver Shutter Details
Shutter Species: Pine or Cedar
Shutter Sizes
|
Wood |
|
| Width Range:* |
8” – 36” |
|
| Height Range:* |
18” – 120” |
|
| Thickness: |
1-1/8” |
|
| Louver Size: |
1-5/8” |
|
| Louver Spacing: |
1-5/16” |
|
|
|
|
|
|
|

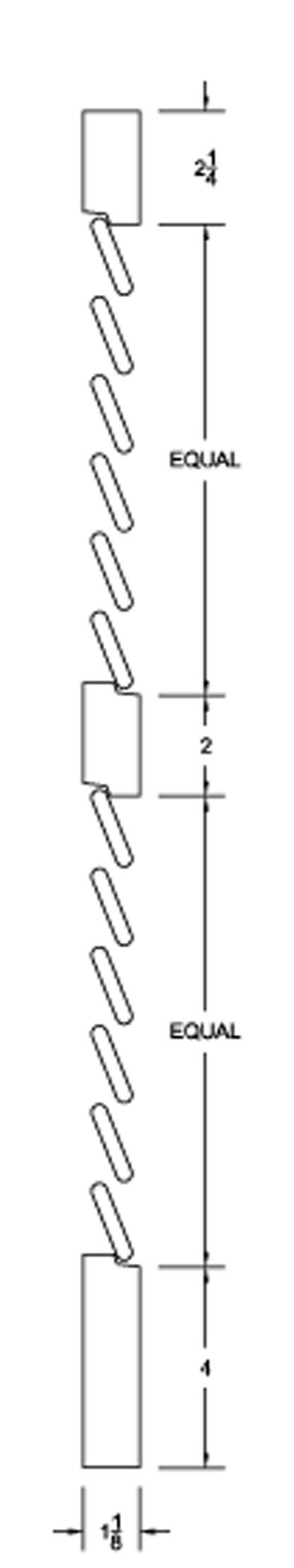

Stiles and Rails
|
Wood |
|
| Stile Width: |
2-1/4″ |
|
| Top Rail Width: |
2-1/4″ |
|
| Mid Rail Width: |
2″ |
|
| Bottom Rail Width: |
4″ |
|
| Sticking Detail: |
square edge |
|
|
|
|
|
|
|
Options:
- Custom stile & rail widths
- Custom mid rail location
- Multiple mid rails
- Priming is available
- Rabbetted & beaded stile
- Radius, segment or angled top
- Boston style (2” horns on bottom)
- False tilt rod
|
Ordering and Sizing:
If you are looking for sizes outside the above information please let us know. Keep in mind, we make custom shutters. The above information can be used as a general guideline or as a starting point.
Elite Series Louver Shutter Details
Shutter Sizes
|
Wood |
|
| Width Range:* |
8” – 36” |
|
| Height Range:* |
18” – 120” |
|
| Thickness: |
1-3/8” |
|
| Louver Size: |
1-5/8” |
|
| Louver Spacing: |
1-5/16” |
|
|
|
|
|
|
|
Stiles and Rails
|
Wood |
|
| Stile Width: |
2-1/2″ |
|
| Top Rail Width: |
2-1/2″ |
|
| Mid Rail Width: |
2-1/4″ |
|
| Bottom Rail Width: |
4-1/4″ |
|
| Sticking Detail: |
square edge |
|
|
|
|
|
|
|
Options:
- Custom stile & rail widths
- Custom mid rail location
- Multiple mid rails
- Priming is available
- Rabbetted & beaded stile
- Radius, segment or angled top
- Boston style (2” horns on bottom)
- False tilt rod
Elite Series louver shutters are made using only the finest and most sturdy materials. Traditional true louver shutters are built using mortise & tenon construction. They feature square edge stiles and rails and “flush face” design (all stiles and rails are the same thickness). True louver shutters are fully customizable; almost any part can be modified and located to suit your needs. Elite Series shutters are thicker, stiles and rails are wider and have the appearance of a more substantial and heavier shutter.
Request a Quote:
